Advanced EPS Automatic Batch Pre-Expander Machine

Technical Specifications of EPS Automatic Batch Pre-Foaming Machine

FDS930B and FDS1100B Models

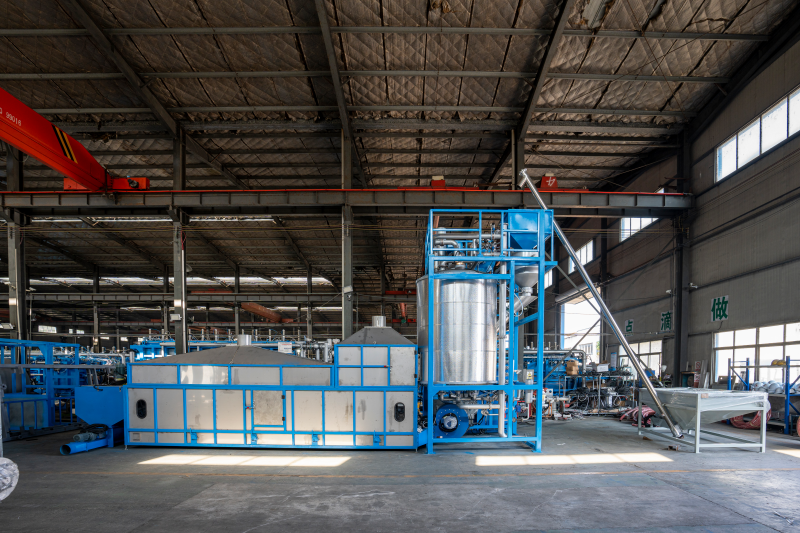

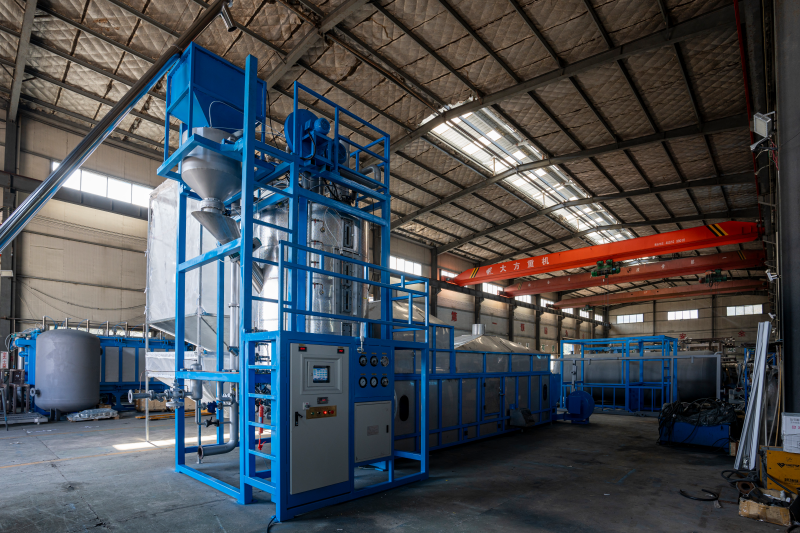

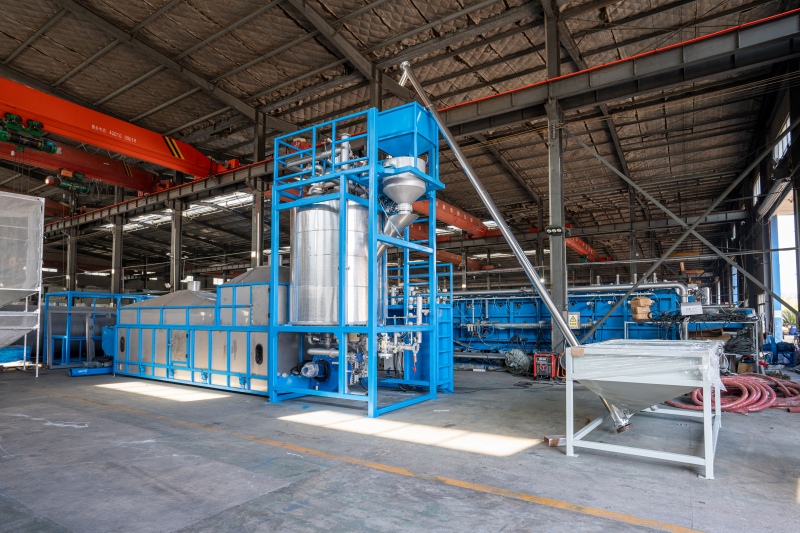

The EPS high-end automatic batch pre-foaming machines, model numbers FDS930B and FDS1100B, are designed with an intelligent control system to ensure seamless and efficient EPS pre-foaming operations. These machines are ideal for enhancing expansion uniformity of foam particles and boosting production efficiency while minimizing manual intervention and training costs.

Key Features

• Compact Structure: The machines feature a compact design that ensures easy operation and maintenance.
• Intelligent Control System: Facilitates fully automated EPS pre-foaming processes to enhance production stability and efficiency.
• Versatile Application: Suitable for pre-foaming treatment of various EPS plates, blocks, and customized foam particles.

Technical Data

• Expansion Chamber Diameter: DN930 mm (FDS930B), DN1100 mm (FDS1100B)
• Volume: 1 m³ (FDS930B), 1.4 m³ (FDS1100B)
• Usable Volume: 0.71 m³ (FDS930B), 1.0 m³ (FDS1100B)
• Steam Entry: 2 (DN50) for both models
• Steam Consumption: 4-6 kg/cycle (FDS930B), 6-8 kg/cycle (FDS1100B)
• Compressed Air Entry: 2 (DN50) for both models
• Compressed Air Consumption: 0.5-0.7 m³/cycle (FDS930B), 0.9-1.1 m³/cycle (FDS1100B)
• Connected Load/Power: 17 kW (FDS930B), 19 kW (FDS1100B)
• Expanded Density Range: 10-50 m³ (FDS930B), 10-40 m³ (FDS1100B)
• Density Tolerance: ±2.5% (FDS930B), ±3% (FDS1100B)
• Overall Dimensions (L*W*H): 2700*4200*5900 mm (FDS930B), 2900*4500*5900 mm (FDS1100B)
• Weight: 2700 kg (FDS930B), 3200 kg (FDS1100B)

Material Conveying and Capacity

• Material Conveying Line: 6 (DN150) for both models
• Capacity for Different Densities:
  • 10g/L: 230 (FDS930B), 320 (FDS1100B)
  • 15g/L: 320 (FDS930B), 550 (FDS1100B)
  • 20g/L: 450 (FDS930B), 750 (FDS1100B)
  • 30g/L: 670 (FDS930B), 850 (FDS1100B)

Efficient Production

These pre-foaming machines are crafted for effective mass production, ensuring reliable and stable operations. The intelligent features provide a significant reduction in manual tasks, promoting greater consistency and quality in EPS foam processing.
