Auto-Shaping EPP Molding Machine for Industry Use

Application Technical Data

Our advanced molding machines, EPP813, EPP1214, and EPP1318, offer superior precision and efficiency for various industrial applications. Below is a detailed technical overview of their specifications:

Mold Frame Dimensions and Rear Window Size

• EPP813: 1430X930 mm mold dimensions with 1350X850 mm rear window size.
• EPP1214: 1530X1330 mm mold dimensions with 1450X1250 mm rear window size.
• EPP1318: 1930X1430 mm mold dimensions with 1850X1350 mm rear window size.

Effective Molding Area and Maximum Product Height

• EPP813: Effective area of 1200X700 mm; Max height: 400 mm.
• EPP1214: Effective area of 1300X1100 mm; Max height: 400 mm.
• EPP1318: Effective area of 1700X1200 mm; Max height: 400 mm.

Steam System

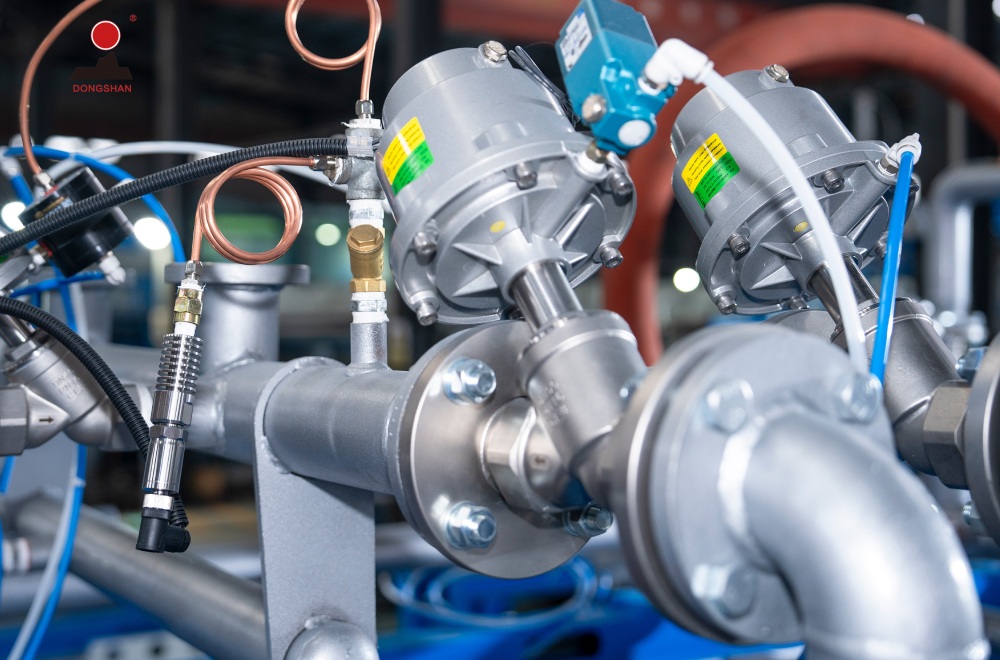

All models operate with a steam pressure range of 5 to 8 Kg/cm², featuring a robust steam pipeline and mold interface configuration for optimal performance.

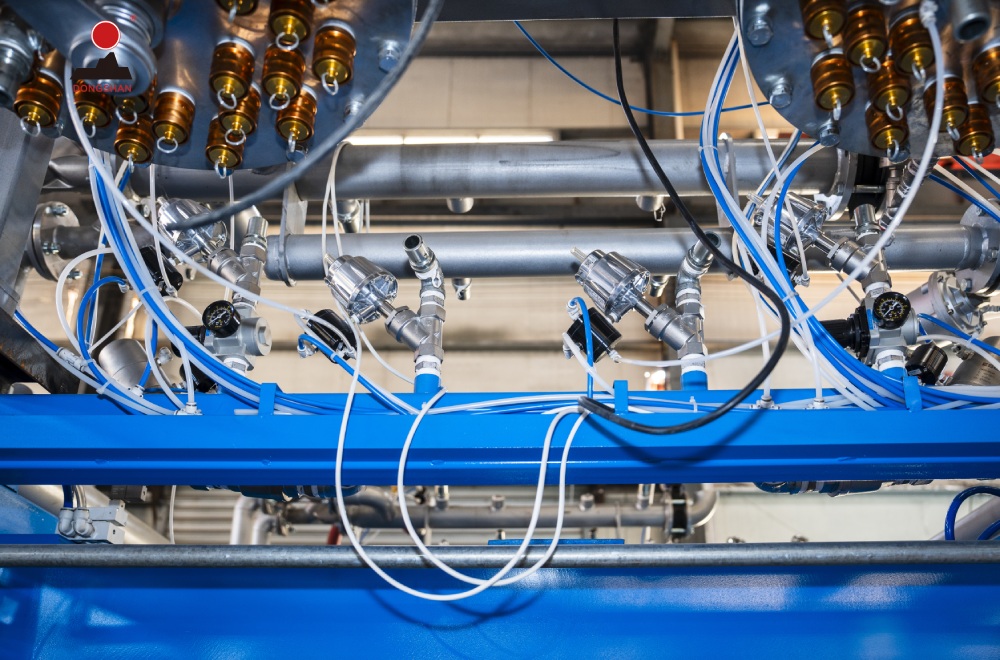

Air and Cooling Water Systems

Designed for high efficiency, the air system works at 4 to 5 Kg/cm², while the cooling water system maintains 3 to 4 Kg/cm² across models, ensuring effective temperature management.

Sewage System and Hydraulic System

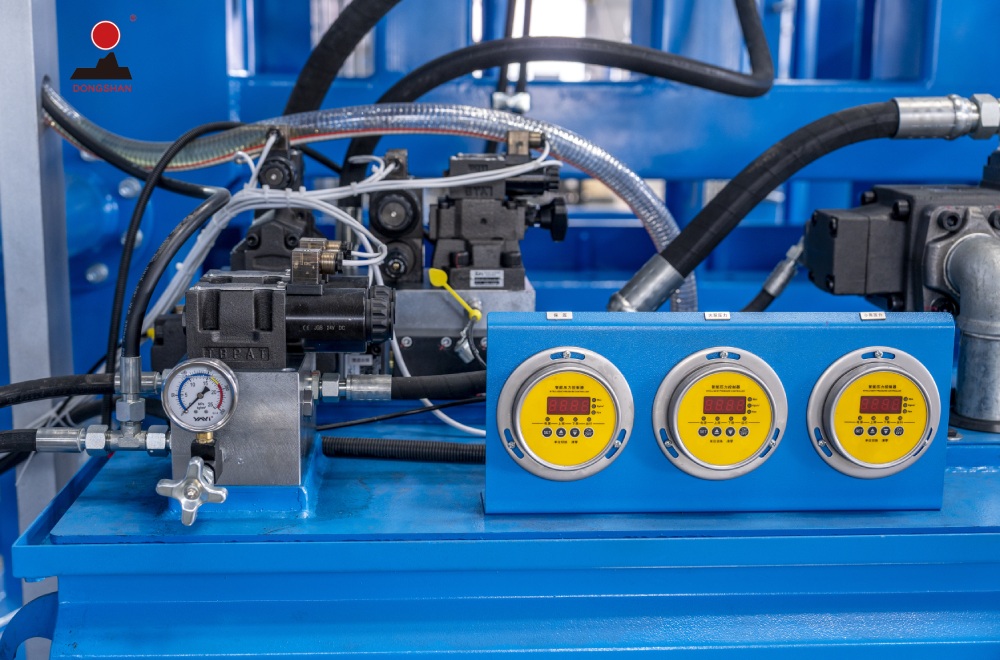

The sewage system is integrated with vacuum and drainage interfaces for effective waste management. Our hydraulic system provides strong clamping forces and smooth mold operations, enhancing productivity and precision.

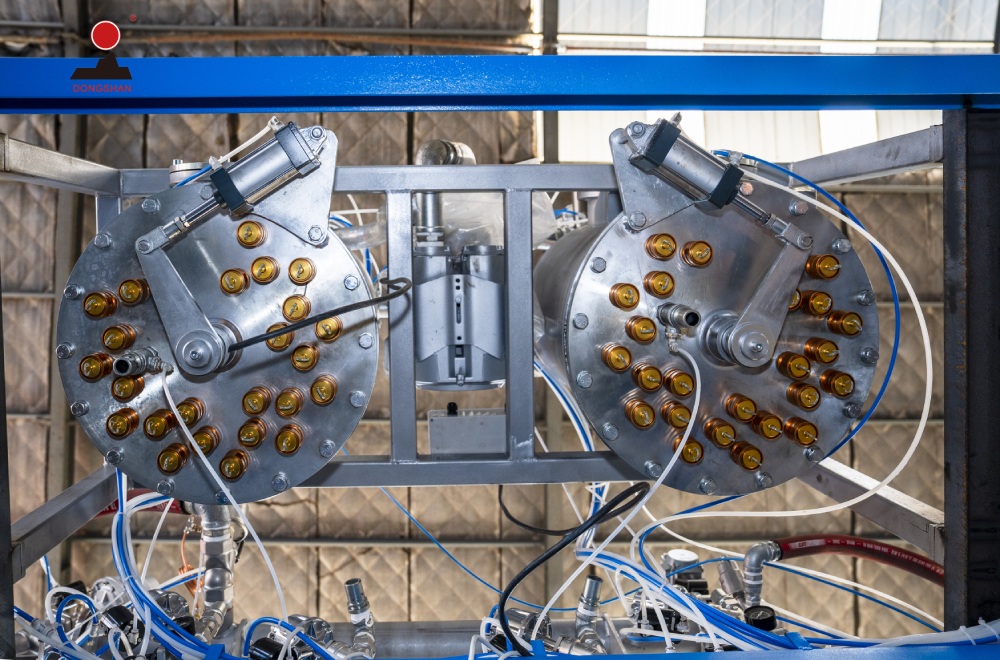

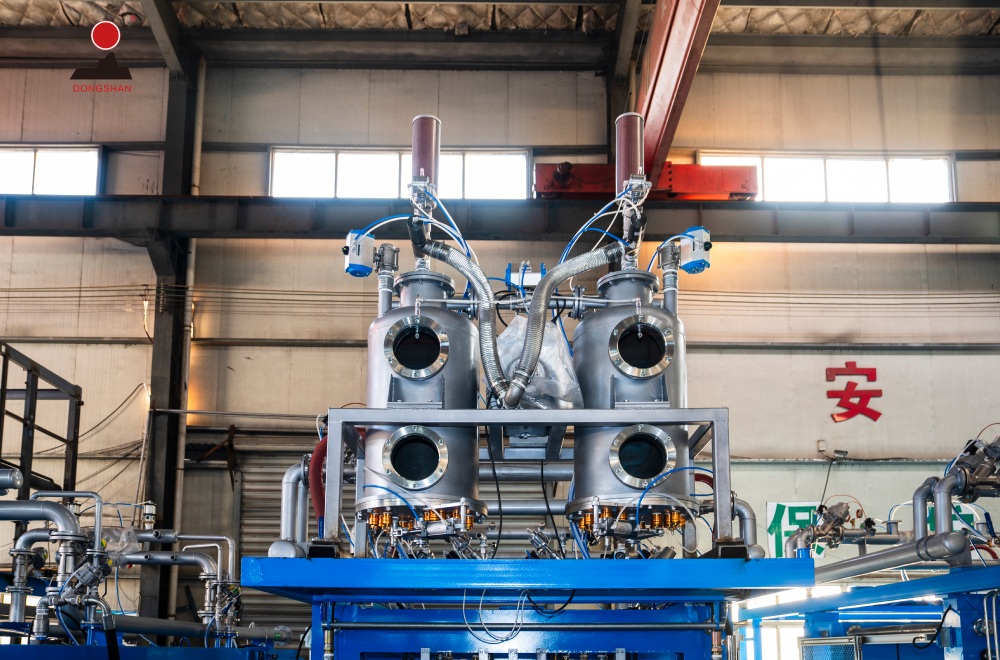

Barrel System and Material Supply

Equipped with a high-capacity barrel system, these machines ensure swift and consistent material supply, facilitating seamless operations with minimal downtime.

Energy-Saving and User-Friendly Features

Our machines incorporate an energy-saving control system, utilizing a proportional pressure reducing valve to stabilize steam output. The user interface is intuitive, supported by touch screen controls and a system alarm for operational safety.

Overall Specifications

• EPP813: Dimensions - 5200X2900X3100 mm; Weight - 10 T.
• EPP1214: Dimensions - 5500X3000X3700 mm; Weight - 13 T.
• EPP1318: Dimensions - 5800X3400X3800 mm; Weight - 15 T.

Ensure precision, efficiency, and safety in your manufacturing processes with our state-of-the-art molding machines.
