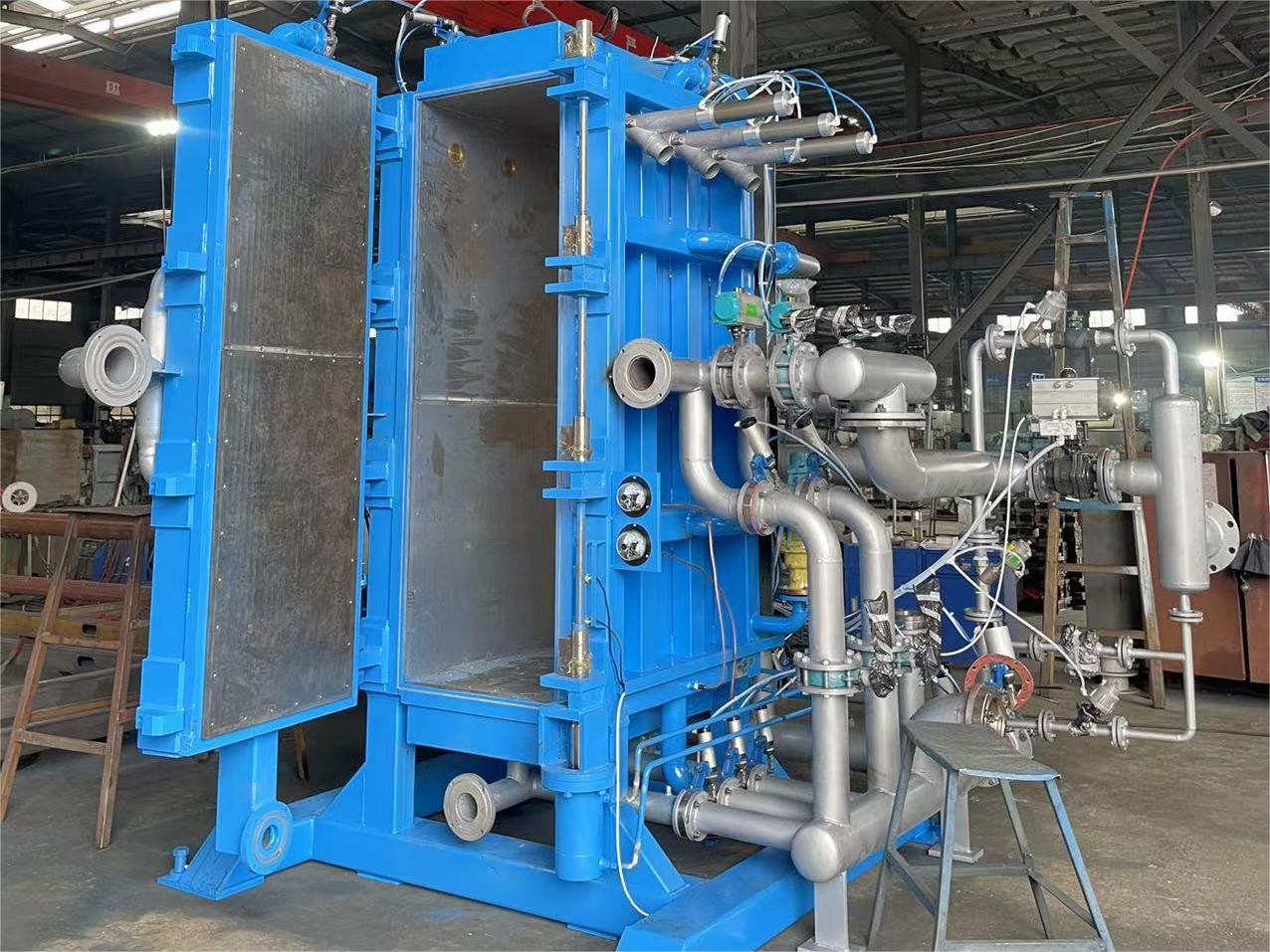

Automatic EPS Block Molding Machine - High Efficiency

High-Efficiency EPS Foam Board Production Equipment

Our fully automatic EPS foam board production equipment is engineered for large-scale sheet forming, offering exceptional stability and efficiency. With an intelligent control system, this machine reduces manual operation through automatic feeding, forming, cooling, and demoulding.

Specification Overview:

• Mould Cavity Size: Options from 2040x1240x1030 mm to 6080x1240x1030 mm
• Block Size (12g/L): Ranges from 2000x1200x1000 mm to 6000x1200x1000 mm
• Connected Load/Power: From 13/28 Kw to 16.5/28.5 Kw
• Overall Dimensions (L*W*H): Starting at 6700x4600x4100 mm
• Machine Weight: From 12,200 Kg to 19,500 Kg

Key Features:

• Efficient Steam System: Reduces production cycle and energy consumption
• Optimized Cooling Structure: Enhances product consistency and surface flatness
• Automatic Operation: Minimizes manual intervention and increases productivity
• Versatile Production Capabilities: Suitable for building insulation, packaging materials, and lightweight infill boards

Technical Specifications:

• Steam Inlet: From 4 (DN100) to 8 (DN150)
• Compressed Air Inlet: From 3 (DN80) to 4 (DN100)
• Vacuum Inlet: From 2 (DN50) to 3 (DN80)
• Cooling Water Consumption: From 0.6-0.8 Kg/Cycle to 12-1.4 Kg/Cycle
• Drain Outlet: Available in sizes from 5 (DN125) to 8 (DN200)

This advanced EPS foam production equipment is an excellent investment to boost your production capacity while reducing operational costs.
