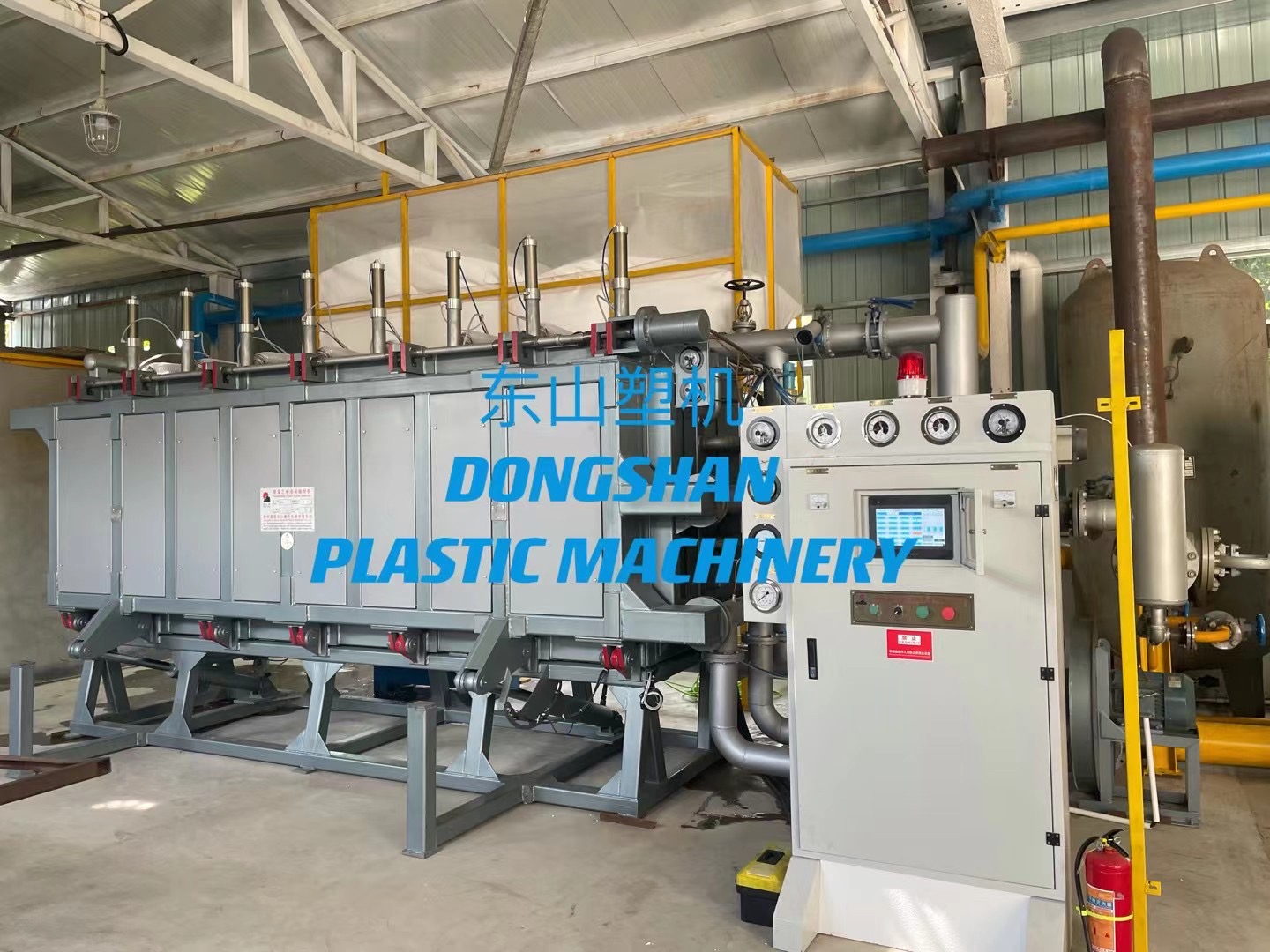

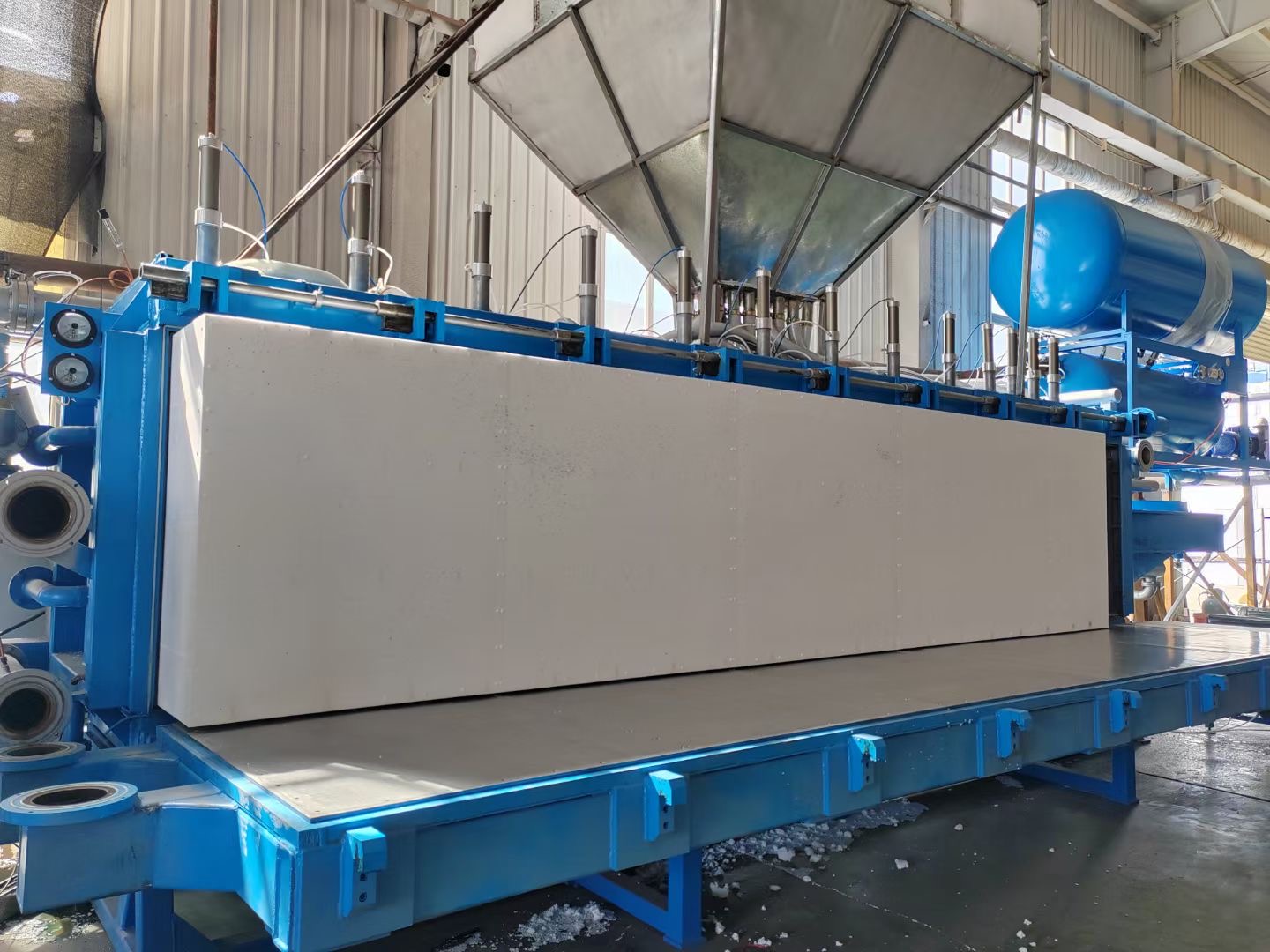

Expandable Polystyrene Foam Vacuum Block Machine

EPS Expandable Polystyrene Foam Vacuum Forming Machines

Our advanced EPS expandable polystyrene foam vacuum forming machines are engineered to enhance production efficiency and product consistency while minimizing manual intervention. These machines are perfect for manufacturing EPS foam blocks, offering precise size control and easy operation.

Machine Specifications

• SPB2000LZ
  • Mould Cavity Size: 2040 × 1240 × 1030 mm
  • Block Size (12g/L): 2000 × 1200 × 1000 mm
  • Steam Inlet: 4＂（DN100）
  • Steam Consumption: 70～100 Kg/Cycle
  • Steam Pressure: 0.75～0.85 MPa
  • Compressed Air Inlet: 3＂（DN80）
  • Compressed Air Consumption: 1.5～2.5 M³/Cycle
  • Compressed Air Pressure: 0.6 MPa
  • Vacuum Inlet: 2＂（DN50）
  • Cooling Water Consumption: 0.6～0.8 Kg/Cycle
  • Cooling Water Pressure: 0.4～0.6 MPa
  • Drain Outlet: 5＂（DN125）
  • Air Outlet: 6＂（DN150）
  • Vacuum Drain Outlet: 4＂（DN100）
  • Produce Time / Cycle (12g/L): 6 min/Cycle
  • Connected Load/Power: 13/28 Kw
  • Overall Dimension: 6700 × 4600 × 4100 mm
  • Weight: 12,200 Kg
• SPB3000LZ
  • Mould Cavity Size: 3060 × 1240 × 1030 mm
  • Block Size (12g/L): 3000 × 1200 × 1000 mm
  • Steam Inlet: 5＂（DN125）
  • Steam Consumption: 100～130 Kg/Cycle
  • Steam Pressure: 0.75～0.85 MPa
  • Compressed Air Inlet: 3＂（DN80）
  • Compressed Air Consumption: 2～3 M³/Cycle
  • Compressed Air Pressure: 0.6 MPa
  • Vacuum Inlet: 2.5＂（DN65）
  • Cooling Water Consumption: 0.8～1.0 Kg/Cycle
  • Cooling Water Pressure: 0.4～0.6 MPa
  • Drain Outlet: 6＂（DN150）
  • Air Outlet: 8＂（DN200）
  • Vacuum Drain Outlet: 5＂（DN125）
  • Produce Time / Cycle (12g/L): 7 min/Cycle
  • Connected Load/Power: 16.5/28.5 Kw
  • Overall Dimension: 6700 × 4600 × 5100 mm
  • Weight: 14,800 Kg
• SPB4000LZ
  • Mould Cavity Size: 4080 × 1240 × 1030 mm
  • Block Size (12g/L): 4000 × 1200 × 1000 mm
  • Steam Inlet: 6＂（DN150）
  • Steam Consumption: 130～160 Kg/Cycle
  • Steam Pressure: 0.75～0.85 MPa
  • Compressed Air Inlet: 4＂（DN100）
  • Compressed Air Consumption: 2.5～3.5 M³/Cycle
  • Compressed Air Pressure: 0.6 MPa
  • Vacuum Inlet: 3＂（DN80）
  • Cooling Water Consumption: 1.0～1.2 Kg/Cycle
  • Cooling Water Pressure: 0.4～0.6 MPa
  • Drain Outlet: 8＂（DN200）
  • Air Outlet: 8＂（DN200）
  • Vacuum Drain Outlet: 5＂（DN125）
  • Produce Time / Cycle (12g/L): 8 min/Cycle
  • Connected Load/Power: 16.5/28.5 Kw
  • Overall Dimension: 6700 × 4600 × 6100 mm
  • Weight: 17,200 Kg
• SPB6000LZ
  • Mould Cavity Size: 6080 × 1240 × 1030 mm
  • Block Size (12g/L): 6000 × 1200 × 1000 mm
  • Steam Inlet: 8＂（DN150）
  • Steam Consumption: 150～180 Kg/Cycle
  • Steam Pressure: 0.75～0.85 MPa
  • Compressed Air Inlet: 4＂（DN100）
  • Compressed Air Consumption: 3.5～4.5 M³/Cycle
  • Compressed Air Pressure: 0.6 MPa
  • Vacuum Inlet: 3＂（DN80）
  • Cooling Water Consumption: 12～1.4 Kg/Cycle
  • Cooling Water Pressure: 0.4～0.6 MPa
  • Drain Outlet: 8＂（DN200）
  • Air Outlet: 8＂（DN200）
  • Vacuum Drain Outlet: 5＂（DN125）
  • Produce Time / Cycle (12g/L): 12 min/Cycle
  • Connected Load/Power: 16.5/28.5 Kw
  • Overall Dimension: 6700 × 4600 × 8100 mm
  • Weight: 19,500 Kg

Advantages of Our EPS Foam Machines

Our EPS foam machines are tailored to meet diverse production needs, offering notable benefits:

• Efficient forming processes for high production capacity
• Controllable size for customized block production
• Simple operation for reduced manual intervention
• Enhanced product consistency and reduced waste
