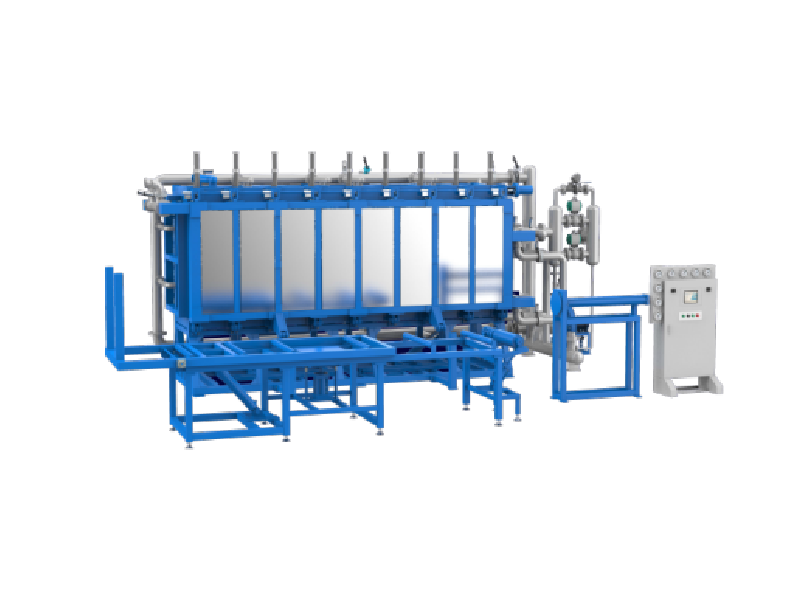

High-Precision EPS Vacuum Block Molding Machine

Advanced EPS Adjustable Horizontal Vacuum Block Molding Machines

Our state-of-the-art EPS adjustable horizontal vacuum block molding machines are engineered for superior performance and adaptability, with extensive applications in construction, packaging, and decoration industries.

Key Features

• Adjustable Size: Supports multi-specification production to cater to diverse customer customization needs.
• Vacuum Forming Technology: Enhances foam density uniformity and improves surface flatness for better quality products.
• Efficient & Energy Saving: Steam and cooling systems are optimized to minimize energy consumption while boosting production capacity.
• Stable Operation: Horizontal structure design enhances stability and durability, making it ideal for continuous mass production.

Technical Specifications

Mould Cavity Size

• SPB2000V: 2050×1240×630 mm
• SPB3000V: 3080×1240×630 mm
• SPB4000V: 4100×1240×630 mm
• SPB6000V: 6120×1240×630 mm
• SPB8000V: 8140×1240×630 mm

Block Size

• 2000×1200×600 mm
• 3000×1200×600 mm
• 4000×1200×600 mm
• 6000×1200×600 mm
• 8000×1200×600 mm

Steam & Air Specifications

• Steam Entry: 5 (DN125) to 8 (DN200)
• Steam Consumption: 25~160 kg/cycle
• Compressed Air Entry: 1.5 (DN40) to 3 (DN80)
• Air Consumption: 1.5~3 m³/cycle
• Pressure: 0.6-0.8 Mpa

Cooling & Ventilation Specifications

• Vacuum Cooling Water Entry: 1.5 (DN40)
• Water Consumption: 0.4~2 m³/cycle
• Drainage Vacuum Vent: 4 (DN100) to 5 (DN125)
• Steam & Air Cooling Vent: 4 (DN100) to 8 (DN200)

Performance & Dimensions

• Capacity @15kg/m³: 4 to 8 min/cycle
• Connected Load/Power: 23.75 to 45.75 KW
• Overall Dimension (L×W×H): 5700×4000×3300 to 15700×4600×3500 mm
• Weight: 8000 to 21000 KG

Experience unparalleled efficiency and precision with our EPS adjustable horizontal vacuum block molding machines, ensuring consistent quality and performance across all your production needs.
