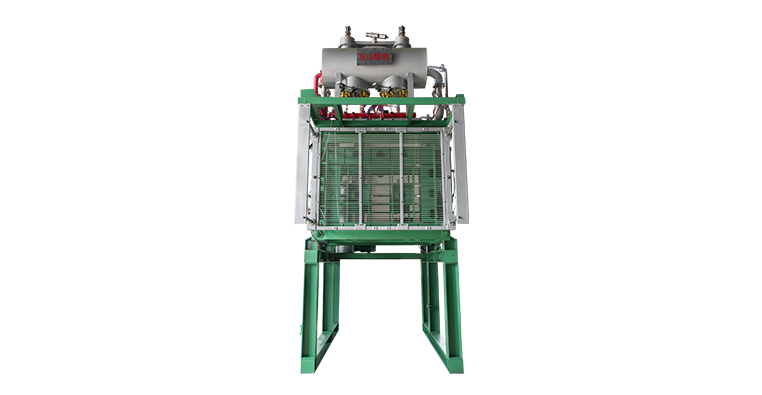

High-Speed EPS Automatic Shape Molding Machine

Technical Specifications of EPS Rapid Automatic Forming Machine

The EPS rapid automatic forming machine is a state-of-the-art solution designed to enhance production efficiency and quality in the manufacturing of foam products. With its advanced heating and cooling system, this equipment significantly reduces production cycles, making it ideal for high-volume manufacturing.

Available Models and Specifications

• FAV1200
  • Standard Mould Size: 1200*1050 mm
  • Max Product's Size: 1050*900*420 mm
  • Weight: 5000 kg
  • Power: 11 Kw
• FAV1400
  • Standard Mould Size: 1400*1250 mm
  • Max Product's Size: 1250*1100*420 mm
  • Weight: 5500 kg
  • Power: 14.5 Kw
• FAV1750
  • Standard Mould Size: 1750*1450 mm
  • Max Product's Size: 1600*1300*420 mm
  • Weight: 6200 kg
  • Power: 16.5 Kw
• FAV1800
  • Standard Mould Size: 1800*1600 mm
  • Max Product's Size: 1650*1450*420 mm
  • Weight: 6500 kg
  • Power: 16.5 Kw
• FAV2000
  • Standard Mould Size: 2000*1800 mm
  • Max Product's Size: 1850*1650*420 mm
  • Weight: 7000 kg
  • Power: 20 Kw

Core Advantages

• Rapid Prototyping: Optimized heating and cooling cycles for increased production efficiency.
• Fully Automatic Control: Intelligent operation minimizes the need for manual intervention.
• High Stability: Ensures product size accuracy and uniform density.
• Multi-Purpose Applications: Suitable for producing EPS products for construction, home appliances, and automotive parts.

Utility Connections and Consumption

• Steam Entry: Varies by model, ranging from 3 to 5 diameter.
• Cooling Water Entry: Sizes range from 2.5 to 5 diameter, with varying consumption per cycle.
• Compressed Air Entry: Sizes range from 2 to 3 diameter.
• Drainage Vent: Sizes range from 5 to 8 diameter.

The EPS rapid automatic forming machine is ideal for applications in packaging, insulation materials, household appliances, and automotive components, making it an asset to any production line looking to enhance efficiency and product quality.
