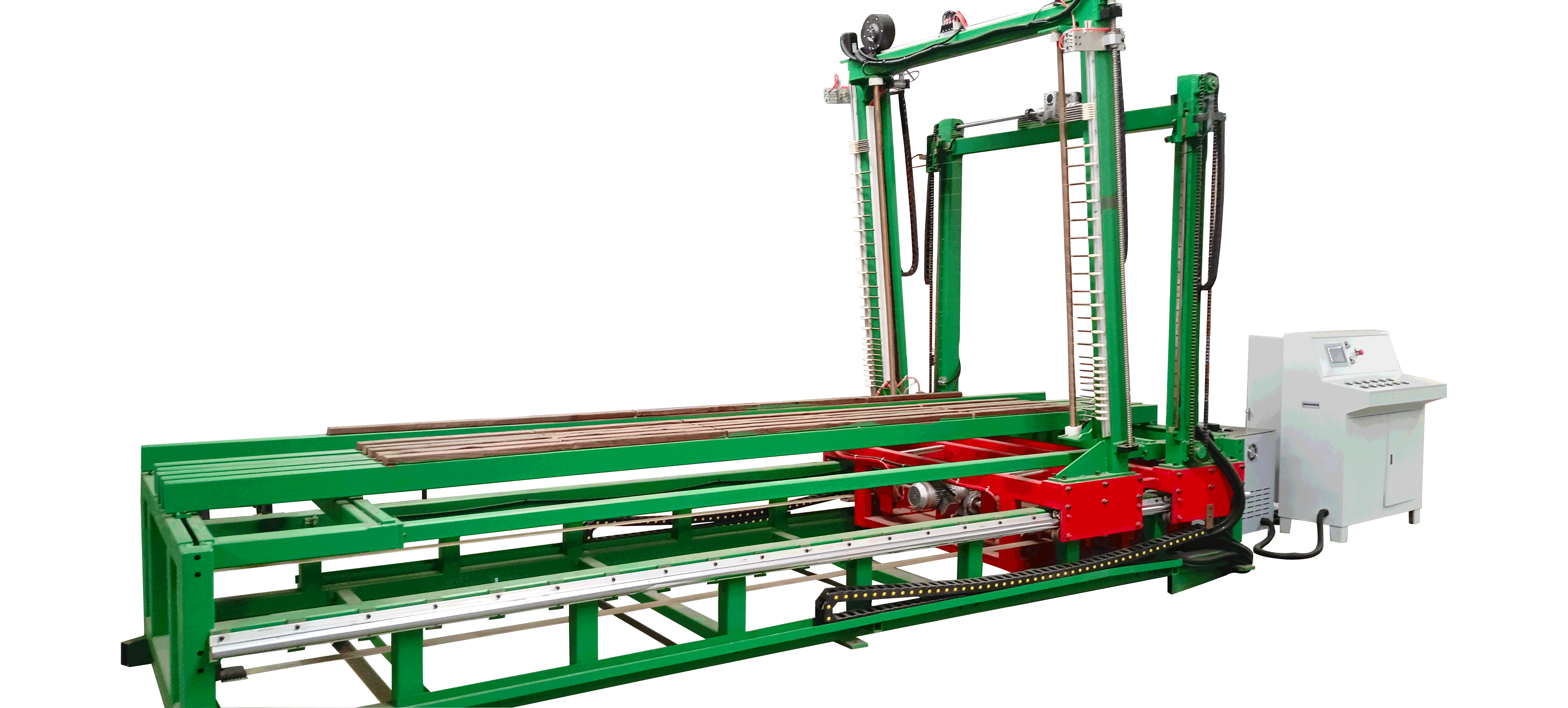

Advanced Automatic Foam Block Cutting Machine

Our cutting-edge automatic screen cutting machine is engineered for precision cutting of EPS and EPP foam blocks. Designed to cater to the electronics, home appliance, and packaging industries, this machine meets large-scale production demands efficiently while minimizing labor costs and enhancing product consistency and quality.

Key Mechanical Features

• Horizontal, Vertical, and Truncated Cutting: Powered by 15KW, 5KW, and 1KW hands, it allows separate regulation of a dynamic transformer for different cutting points.
• Fully Automatic Operation: Equipped with PLC and HMI control systems for seamless operation.
• Automatic Wire Hanging: Set up to three different horizontal thicknesses with automatic line tension adjustment.
• Stepper Motor Control: Features closed-loop control for setting three different cutting lengths directly via touch screen.
• Automatic Reset and Preparation: Once cutting is completed, the system resets automatically, positioning itself for the next operation.
• Quick Adjustment: Includes a model cylinder minimizing adjustment time and enhancing large plate cutting accuracy.
• Safety Features: Electrical limits and mechanical protections ensure safe operation.

Technical Specifications

• Sheet Cutting Size: Suitable for block sizes ranging from 2000 to 6000 mm, up to 1300*1300 mm.
• Minimum Cutting Thickness: Achieves a minimum thickness of 15 mm.
• Cutting Speed: Operates at a speed between 0.4 and 1 m/min.
• Wire Capacity: Supports up to 32 horizontal wires, 10 vertical wires, and 1 truncating wire.
• Hot Wire Specification: Utilizes 0.4 mm diameter high-strength cutting wires.
• Power Supply: Requires a power supply of 380 V / 50 Hz, with a total connected load of 21 Kw.
• Machine Weight and Dimensions: Gross weight of 1800 Kg with dimensions of 4500*8500*1864*2850 mm.

Our foam block cutting machine is an ideal choice for enterprises looking to enhance production efficiency, ensure cutting precision, and maintain high-quality standards in their production line.
